Glass Bottle Beer, Soda, Cola, Sparkling Water Filling Machines, Bottling Line
Automatic filling machine

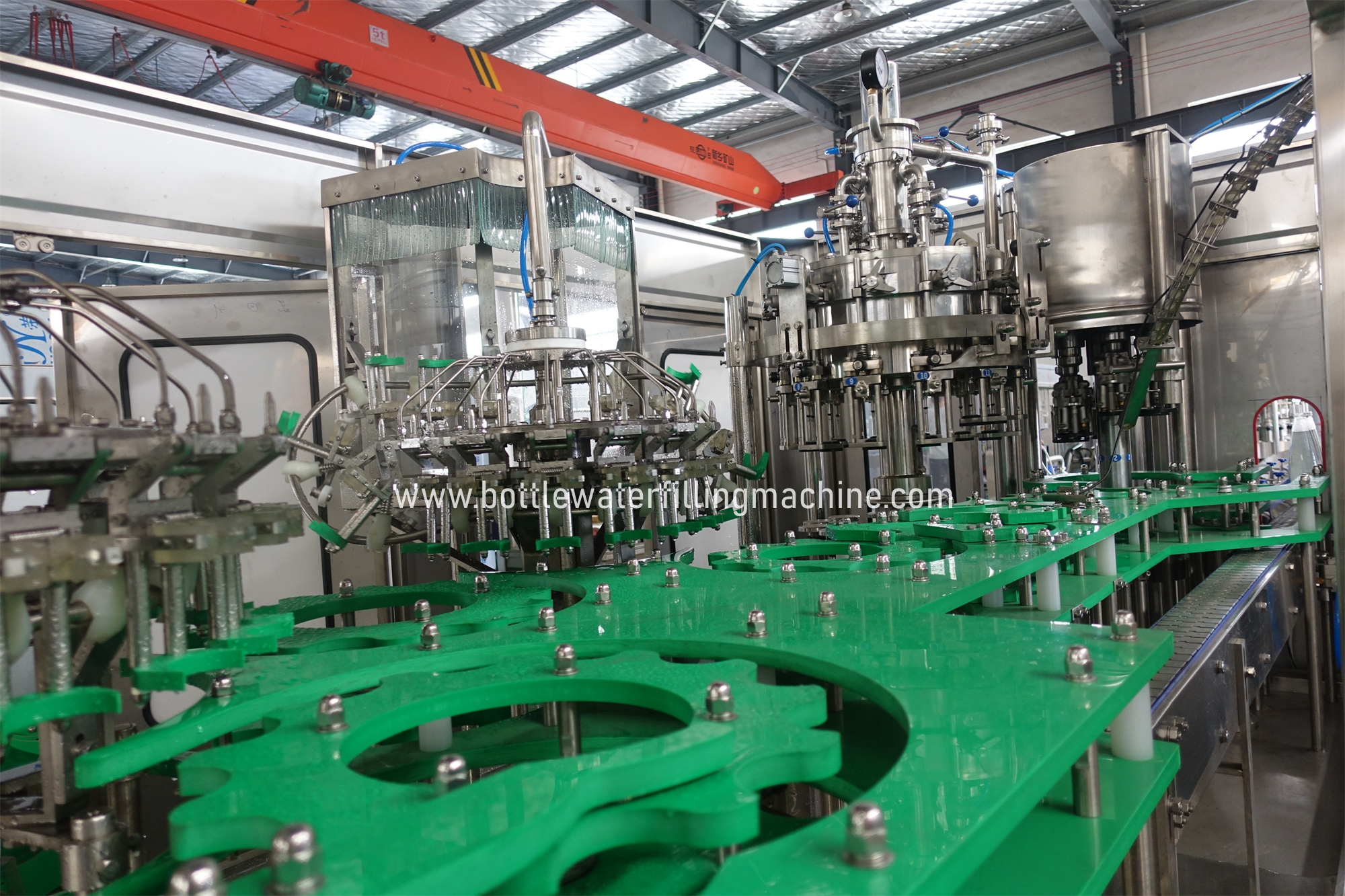

This is glass bottle carbonated soft drink filling machine, adopts isobaric filling, can fill all carbonated soft drink,
like cola, soda, sparkling water, lemonade, fizzy drink and so on, also can fill beer and water.
The machine combines four parts together, disinfection water rinsing, pure water rinsing, filling and capping.
It can fill different size of bottle from 20cl to 200cl, like 33cl, 50cl, 75cl, 100cl, 150cl;
It's controlled by frequency converter, PLC and HMI, easy to operate.
There are different capacity
| | Washing | Filling | Capping | Capacity(b/h)500ml | Motor power | Overall dimension(mm) |
| heads | heads | heads | (KW) |
| BFGF16-12-6 | 16 | 12 | 6 | | | 2100x1400x2500 |
| BFGF18-18-6 | 18 | 18 | 6 | 3000bph | 2.2KW | 2460x1720x2650 |
| BFGF24-24-6 | 24 | 24 | 8 | 4000bph | 3KW | 3100x2100x2650 |
| BFGF32-32-10 | 32 | 32 | 10 | 6000bph | 4KW | 3500x2500x2650 |
| BFGF40-40-10 | 40 | 40 | 12 | 8000bph | 7.5KW | 4600x1800x2650 |
FAQ
Q1: What is your company’s main products?
Filling Machine,Palletizer, Conveyors, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Zhangjiagang. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always perate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE.
