Carbonated beverage rising filling capping 3 in 1 machine
Automatic pet bottle carbonated drink bottling machine
This Rinsing -Filling-capping Integrated machine is highly automatic and efficiency filling with high precision ,It is used for Filling the Carbonated Drink in PET bottle.
The machine have the feature of :
Filling vessel and parts which contact with the Filling material directly are made of stainless steel or protected material ,it meet the standard of food grade ,the sealing parts adopt the heat resistant rubber to meet the technical requirement ,adopt PLC control to realize automatically control and speed adjustable from the bottle feeding in to Final full bottle feeding out.it is easy to adjust to different capacity required ,Adopt balanced pressure Filling principle and spring valve to ensure the beverage quality ,using advanced magnetic clutch adjusting torque device to ensure the quality of cap sealing .
Technical parameter
| odel | DCGF 16-12-6 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-15 |
| Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
| Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
| Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
| Overall size | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400 |

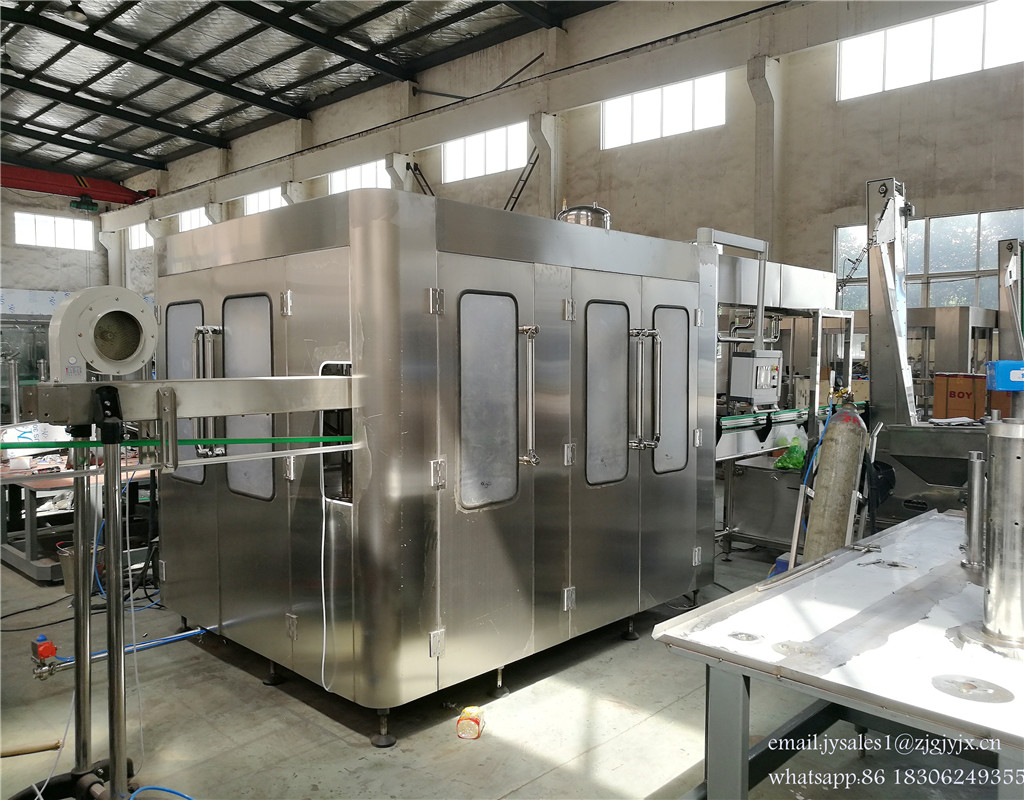

Machine pictures

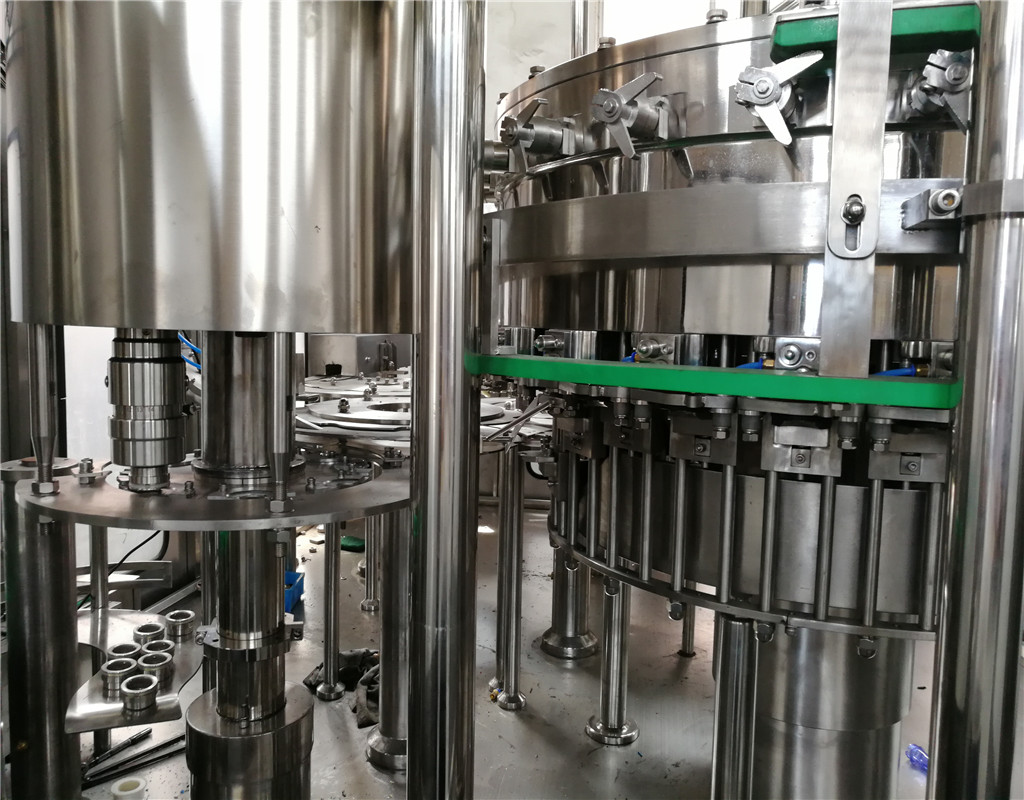

inner look
washing
filling
capping
electrical system
3. The working process
The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts equal pressure filling way. The filling valve opens and begins filling when it moves down and touches thebottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.
