PCL Contol Carbonated Drink Filling Machine With 2000 - 4000 Bph , CE / SGS

PCL Contol 2000-4000 bph carbonated beverage filling machinery with CE / SGS certification


Products Introduction

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.


Features
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
High automation and easy operation make it an ideal option for beverage companies.





Technical Data

Model	DCGF40-40-40	DCGF48-48-12	DCGF60-60-15
Heads of washing, filling, sealing	40-40-10	48-48-12	60-60-15
Production capacity(bottle/hour)	16000-18000	20000-24000	24000-28000
Suitable bottle height(mm)	H=170-320,D=50-100(330-1500ml)
Spraying pressure	0.25-0.3MPa
Total Power(kw)	7.5	11	15
Overall dimension(L×W×H)(mm)	4000×3300 *3400	4850×3650 *3300	6500×5400 *3500
Weight(kg)	8500	1000

Our Service

1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.

Carbonated Soft Drink Filling Machine

CSD Filling Machine

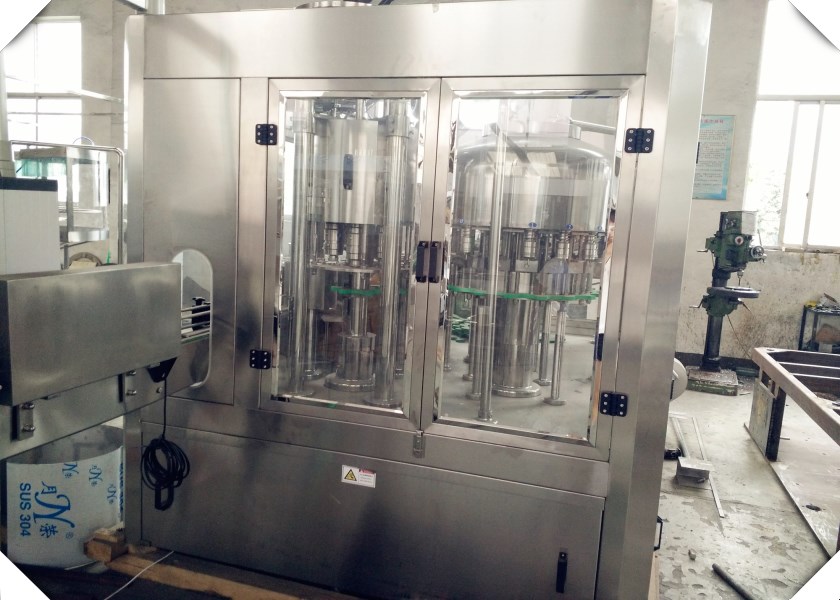

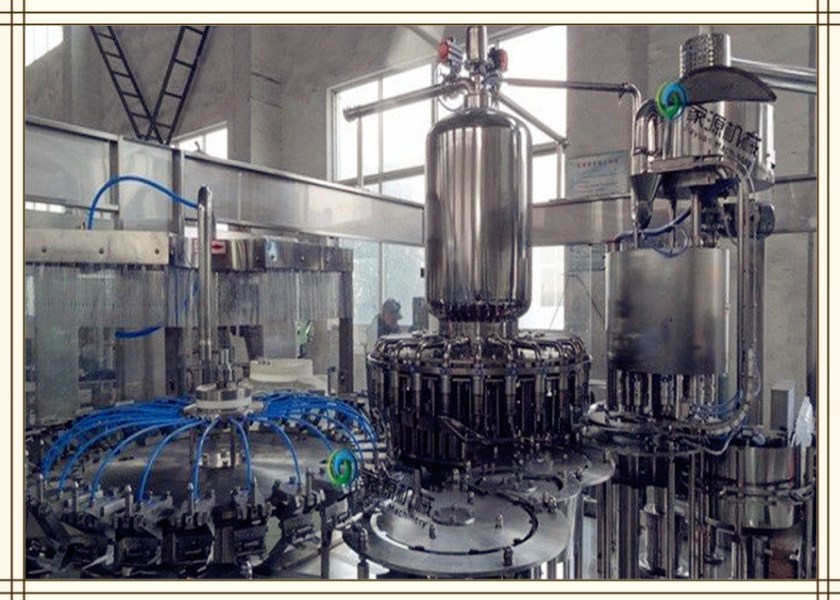

PCL Contol Carbonated Drink Filling Machine With 2000 - 4000 Bph , CE / SGS Images
