1. Washing-Filling-Capping macine
2. Filling Type:Non-carbonated beverage
3. Production Capacity ( Bottles per hour):10000B/h
4. Power:8.63kw
5. Weight:6000kg
6. Overall Size:3500*2200*2250mm
Details Configuration Design:

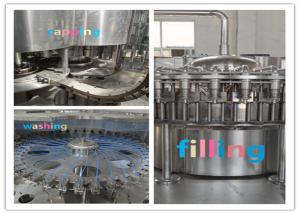

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
Features:
1. Compact structured, good-looking, easy to operate and highly automated.
2. Air conveyor is directly linked with feed-in starwheels,making it easier to change bottles.
3. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement, which instead of adjusting the height of machine.
4. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
6. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
8. Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10. Equipped with CIP clean-in-place return pipeline.
11. Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without
adjustment of height of conveyor chain.
12. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13. Highly effective cap sorting and feed in system is protective for feed in and cap absence.
Why choice us?
| |
Ours |
Other supplies |
| Electircal component |
Famous brand |
ordinary brand |
| Company's history |
nearly 20 years |
a few years |
| Quality |
King |
normal |
| Company type |
Big factory |
Trading company / factory |
Please tell me your production capacity, bottle size.
If possible, please send me the pictures of your product.
We will choose the best machine model for you.
Looking forward to your inquiry!!Thank you very much!!!
