10000BPH PLC Control 200ml Carbonated Automatic Soda Filling Machine

Name: 10000BPH PLC Control 200ml Carbonated Automatic Soda Filling Machine
Brand: JIAYUAN
Price: 1 USD

China 10000BPH PLC Control 200ml Carbonated Automatic Soda Filling Machine wholesale

Brand Name : JIAYUAN

Model Number : BDCGF32-32-8

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 set

Price : please inquire

Supply Ability : 100 sets per year

Delivery Time : 40 working days

Packaging Details : standard wooden case

Product name : glass bottle filling machine

function : rinser filler capper

filling product : beer, carbonated drink, energy drink

filling valves : 32

capacity : 4000-8000 bottles/hr

bottle size : 200-2000ml

Control : PLC+Touch screen

Machine material : stainless steel

Contact Now

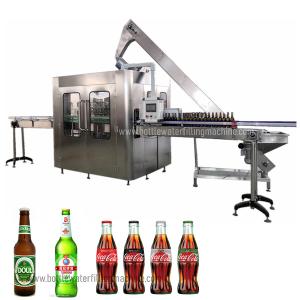

Glass Bottle Filling Machine, Flavored Carbonated Water Bottling Plant Euipment

This machine combined rinser filler capper in one unit, used to produce all carbonated drink, like cola, soft drink, soda, energy driBeer Bottling Plant, Soft Drink Making Machines, Glass Bottle Carbonated Filling Machinenk, fizzy drink, sparkling water, also can produce beer.

It can work different size bottle, from 200ml to 2000ml, the available capacity is from 1000 bottles per hour to 20000BPH, controlled by PLC, frequency inverter, touch screen, easy to operate.

10000BPH PLC Control 200ml Carbonated Automatic Soda Filling Machine

we can provide complete line plants:

1. water treatment;

2. carbonated drink blending system;

3. filling machine

4. warming machine;

5. labeling machine;

6. date printer;

7. packing machine

Techinical parameter

Model	BDCGF32-32-8
Capacity	5000-10000BPH
Washing Heads	32
Filling Heads	32
Capping Heads	8
Filling Prepacity	—5mm<=+5mm
Diameter of Bottle	55-100mm
Height of Bottle	150-310mm
Weight	8000kg
Main Motor Power	5.7w
Overall dimension(mm)	546025202650

OUR ADVANTAGE

We offer professional turnkey project from design till done of the whole project.

1.Project consultation

2.Design

3.Factory building

4.Installation

5.Commissioning

6.Training
