10kw 54.9mm Can Vodka Juice Beverage Filling Machine Normal pressure

Name: 10kw 549mm Can Vodka Juice Beverage Filling Machine Normal pressure
Brand: Jiayuan
Price: 1 USD

China 10kw 54.9mm Can Vodka Juice Beverage Filling Machine Normal pressure wholesale

Brand Name : Jiayuan

Model Number : GF12-4

Certification : CE ISO SGS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set/Sets

Price : US $8,700-500,000 / Set

Payment Terms : L/C, T/T

Supply Ability : 15 Set/Sets per Month

Delivery Time : 30 working days

Packaging Details : Plastic film wrapping,wooden boxes packaging

Capacity : 6000 cans per hour

Filling material : Juice,Wine,Vodka,Water

Function : Can Filling Sealing

Filling pressure : Normal pressure

Warranty : One year for free

Driven Type : Electric

Contact Now

Juice Can Filling Machine , Vodka Aluminum Can Filler And Sealer

Production Description of can filling machine

This can filling machine is developed by our company on the basis of reference to the foreign filling and sealing machine for non gassy beverage and combining with China's national conditions.It is mainly used for filling and sealing all kinds of iron and aluminum cans.It has the characteristics of fast filling and sealing speed, consistent height between the liquid level in the tank and the opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation and so on. It is the most ideal filling and sealing equipment for canning factories.This product conforms to the national standards and enterprise standards, and is allowed to leave the factory after passing the strict inspection and test.

Technical parameter of can filling machine

Model	GF12-4
Capacity (can/Hour)	6000
Suitable can size ( ml )	Can diameter: 54.9mm; 57.5mm Can height:134mm; 168mm
Can size	200/202/206/209
Heads of filling	12
Heads of sealing	4
Compressed air:	0.4-0.8mpa, flow rate: 0.16m3/min
Filling temperature(℃ )	Normal temp
Power source specification	AC380V/50HZ
Power (kw)	10
Overall dimension(mm)	345016002150
Weight(kg)	3450

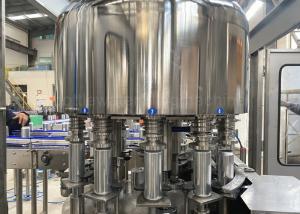

Main image show of can filling machine

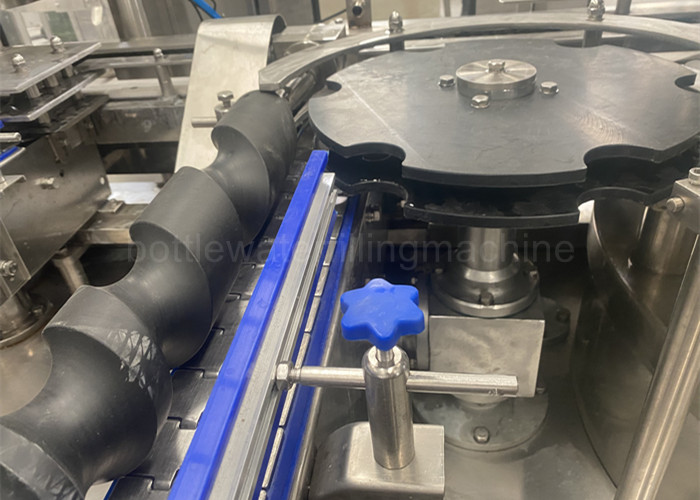

Can feeding part

The feeding and conveying parts are mainly composed of conveying support, conveying chain plate, feeding dial assembly and dividing screw assembly. The can is driven into the conveyor belt by the chain plate, and evenly enters into the can feeding dial through the can dividing screw, and then is sent to the filling valve of the filling cylinder for filling

Lid dropping part

The lid dropping parts are mainly composed of fixed plate, cover shifting plate, inner and outer guide plate, transmission gear box, cover splitter, cover cutter, casting box and cover dropping seat.

We can supply you with complete aluminum can filling production line for juice or water ot carbonated drink,just give us your requirements,you can inquiry me freely,I will contact you in time.
