500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

Name: 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
Brand: jiayuan
Price: 1 USD

Brand Name : jiayuan

Model Number : RCGF32-32-10

Certification : CE,ISO,SGS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set/Sets

Price : US $15,000 - 800,000 / Set

Supply Ability : 10 Set/Sets per Month

Delivery Time : 30 work days

Packaging Details : wooden box

Voltage : 380V 50Hz

Dimension(L*W*H) : 3600*2800*3150mm

Weight : 5000KG

After-sales Service Provided : Engineers available to service overseas

Warranty : One Year for free

Material : Food grade stainless steel 304

Filling capacity : 14000BPH(500ml)

Bottle type : PET/Plastic

Contact Now

500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

Features

a. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

b. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

c. Safe protective devices ensure safety of operator and machine

d. Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

e. The module of screw capper ensures the tightness of the cap and avoids bottle damage

f. Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

g. Unique control mechanism keeps circumfluence volume below 5%

h. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

i. High efficient clean air filter circulation system ensures high sanitary requirements

j. Low overall machines noise that is comparable to any internationally known equipments in its class

k. Self-lubricationg system imported from America provides continuous smooth operation

Technique parameter

Model	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
Productivity	6000BPH	10000BPH	14000BPH
Rinsing Head	18	24	32
Filling Head	18	24	32
Capping Head	6	8	10
Bottle Volume	350ml~2000ml±10ml
Bottle Diameter	φ50-92mm
Bottle Height	150-310 mm
Filling Tolerance	±2%
Cap Size	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa
Air Consumption	500 L/min
Filling Water Consumption	3 m3/h	6 m3/h	9m3/h
Rinsing Water Consumption	1 m3/h	2 m3/h	3m3/h
Motor Power	6.68kW	7.68kW	9.18kw
Voltage	380V
Dimension(L×W×H)	245018002200mm	275021802200mm	360028003150mm
Weight	3000kg	4000kg	5000kg
Filling Principle	Gravity Filling

Product introduction

This machine is my company's introduction of German technology. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.The automatic 3 in 1 juice filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

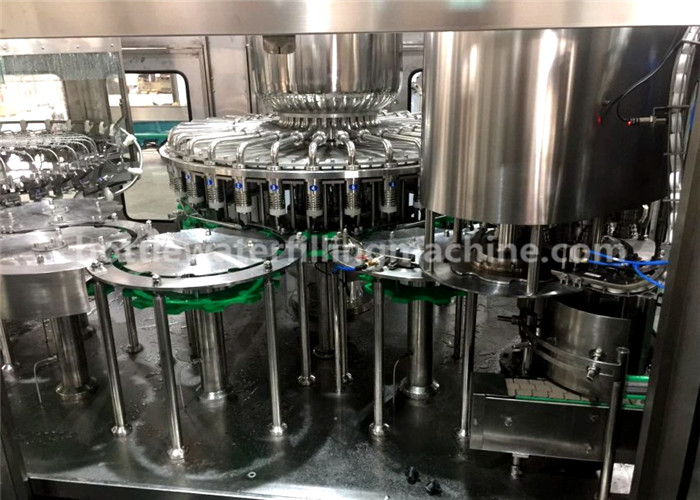

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the

efficiency a lot.
