Carbonated beverage rising filling capping 3 in 1 machine
Features:
1. This DCGF Wash-filling-capping 3-in-1unit:
2. Beverage Machinery is used to produce Gas beverage (CSD)
3. The DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing,
4. it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
characteristics:
1). Compact structured, good-looking, easy to operate and highly automated.
2). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.
3). Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.
4). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.
6). Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7). Replacement between CO2 and O2 ensure almost no O2 in bottle, long filling pipe reduce O2 content to null
8). Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9). High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10). Equipped with CIP clean-in-place.
Technical parameter
| odel | DCGF 16-12-6 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-15 |
| Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
| Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
| Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
| Overall size | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400 |

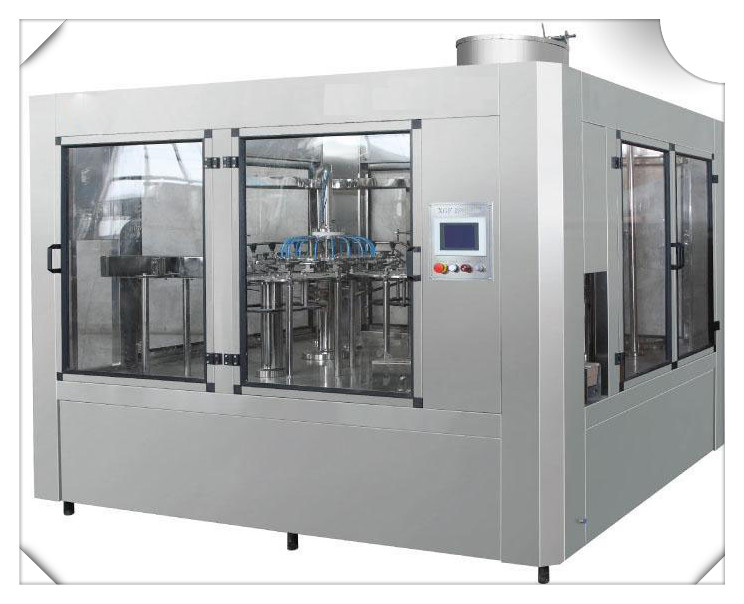

Machine pictures

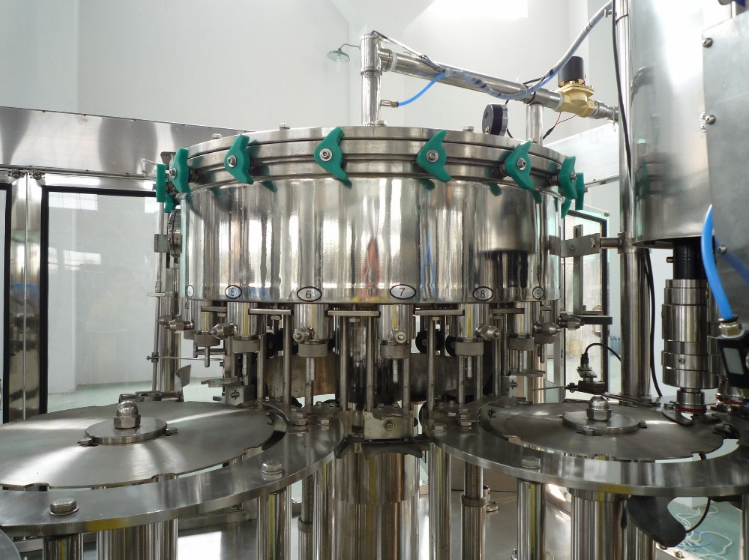

inner look
About Rinser Station
Neck Control with plastic snap on the gripper.
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
SUS304 water collecting tray
Spraying inject design, can completely washing the bottles.
Washed water recycling system, for water saving !! (Washed bottle---drip in water tank--water pump---raw water tank)
About Filler Station
The entire filler is isobar filling system.
High accurate SUS304L construction filling nozzle, make sure high accurate filling level
SUS304L liquid bowl, & pipeline system.
No bottles, no filling
Annulus Liquid bowl, with automatic water level controller
About the Capper
Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Automatic stop when lack of bottle.
electrical system
final products
