3000kg Glass Bottle Carbonated Drink Filling Machine With Touch Screen Control

How filling machines works

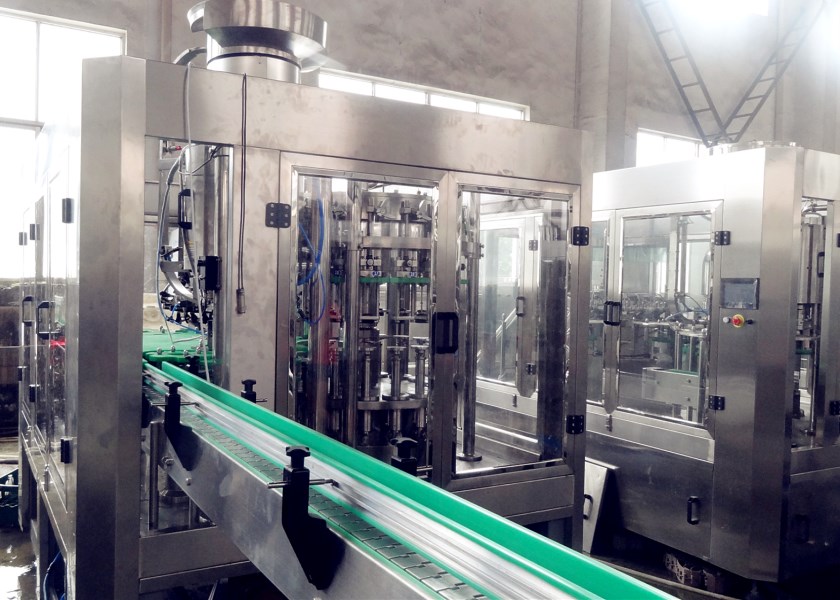

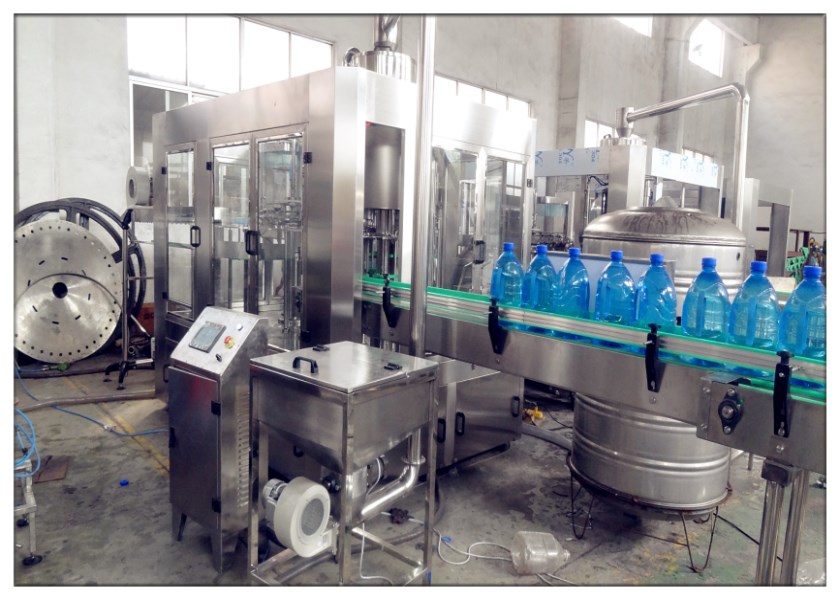

The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck and are allocated individual filling values.

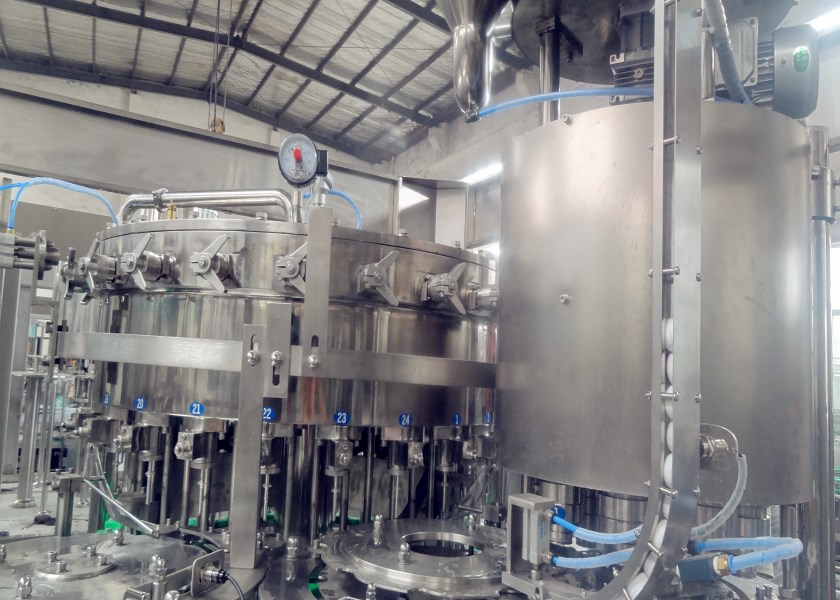

The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.

1. The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine

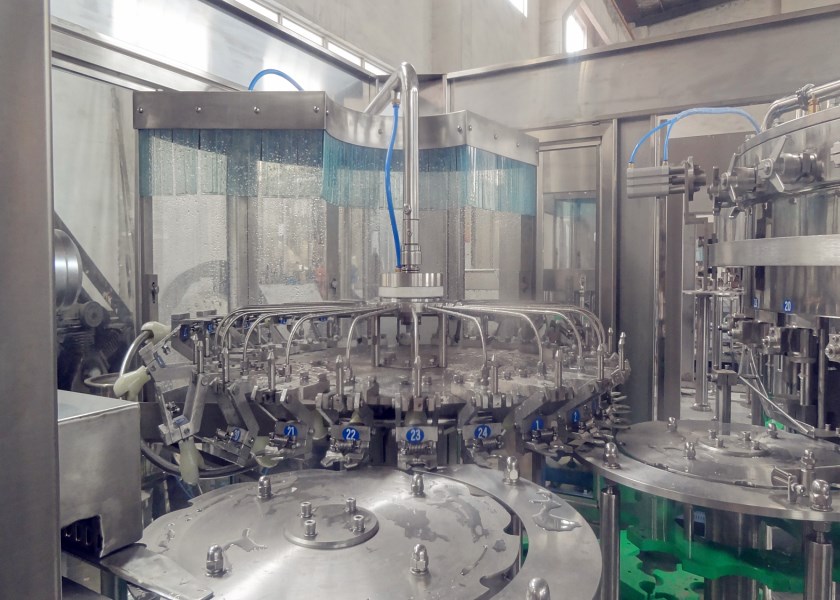

3. Spring type rinsing catcher can wash both inside and outside of the bottle
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
5. Magnetic powered cap device ensures tightness and prevents damage of the caps
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
