Introduction

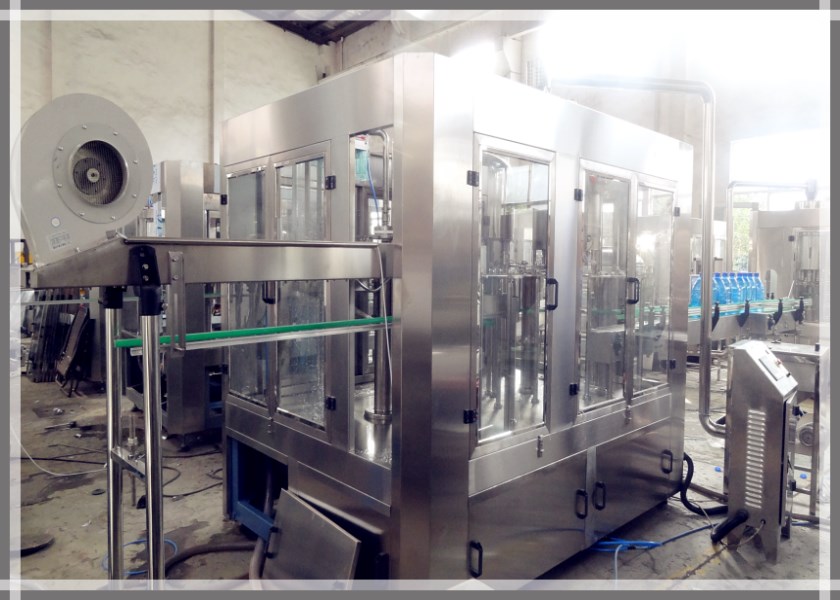

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Washing part of bottle washing filling capping machine
a) Rotary pan is made of stainless steel 304.
b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.
Filling part of bottle washing filling capping machine
a) Rotary pan is made of stainless steel 304
b) The way of filling is gravitation filling.
c) The filling valve is adopted best stainless steel 304
d) The structure of filling valve is reasonable, the amount is correct
e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle
Capping part of bottle washing filling capping machine
a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can
stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.
b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.
Technical Parameter
| Model | DCGF40-40-40 |
| Heads of washing, filling, sealing | 40-40-10 |
| Production capacity(bottle/hour) | 16000-18000 |
| Suitable bottle height(mm) | H=170-320,D=50-100(330-1500ml) |
| Spraying pressure | 0.25-0.3MPa |
| Total Power(kw) | 7.5 |
| Overall dimension(L×W×H)(mm) | 4000×3300*3400 |
| Weight(kg) | 8500 |
