Electric Driven Carbonated Drink Filling Machine With Adjustable Filling Volume

electric driven type carbonation device/carbonation equipment with engineer guided

Products Introduction

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. It employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.

Characteristics

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Technical Data

Model	DCGF18-18-6	DCGF24-24-8	DCGF32-32-8	DCGF40-40-40	DCGF48-48-12	DCGF60-60-15	DCGF80-80-20
Heads of washing, filling, sealing	18-18-6	24-24-8	32-32-8	40-40-10	48-48-12	60-60-15	80-80-20
Production capacity(bottle/hour)	5000-7000	8000-12000	12000-15000	16000-18000	20000-24000	24000-28000	36000-40000
Suitable bottle height(mm)	H=170-320,D=50-100(330-1500ml)
Spraying pressure	0.25-0.3MPa
Total Power(kw)	2.2+0.37	3+0.45+0.25	5.5	7.5	11	15	19
Overall dimension(L×W×H)(mm)	2500×1760*2650	3100×2100 *2650	3800×2800 *2650	4000×3300 *3400	4850×3650 *3300	6500×5400 *3500	7650×6400 *2700
Weight(kg)	3500	4650	6800	8500	1000

Our Service

1) One year warranty for the whole system.

2) Free equipment installation and debugging.

3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4) We can provide internship service and help you train the operator and mechanic.

5) Free beverage production technology and process configuration.

6) We can help you to design the product line, workshop and provide turn-key project.

Company Information

Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.

We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry.

The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.

carbonated beverage filling machine

CSD Filling Machine

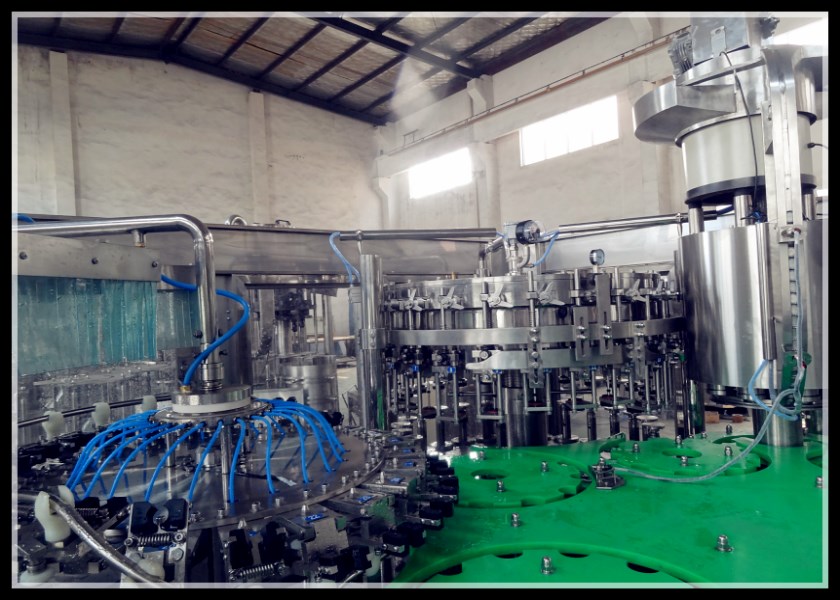

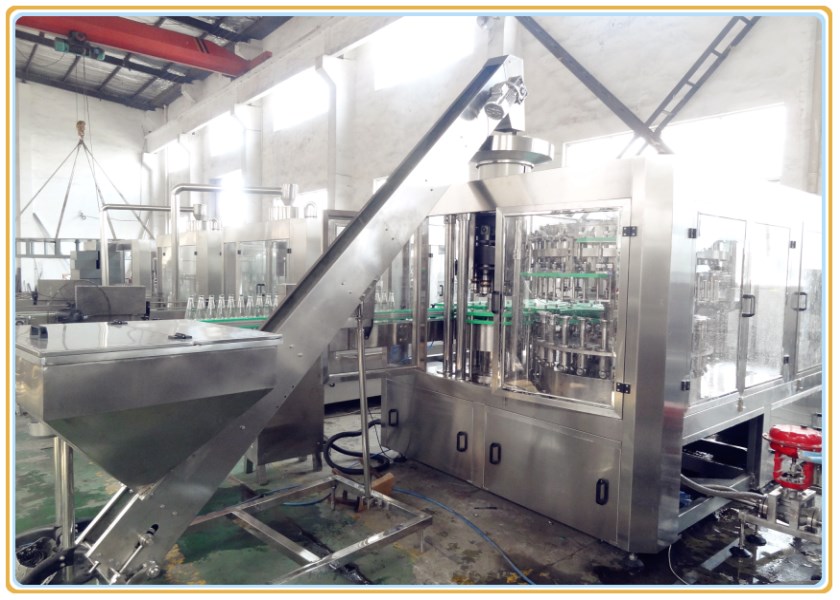

Electric Driven Carbonated Drink Filling Machine With Adjustable Filling Volume Images
