Introduction

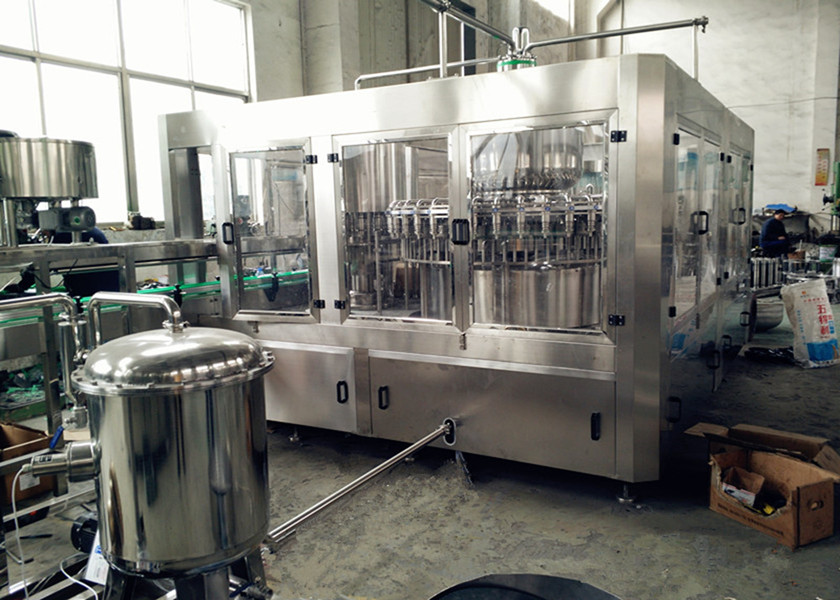

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
•Adopts the negative pressure filling which we specifically design for CSD filling, it ensures
minimal loss of CO2 from the product
• The configuration of filler is advanced, pithy and rational and the driving and up-down transmission
is located between the stainless steel working plat and the bracket and their waterproof is good,
sanitary and credible and adjusting and maintaining are very easy.
• We design the filling valves on basis of foreign advanced technique for adapting high-speed hot
filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting
easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.
• The filling operation is faster and more stable because the new type micro pressure filling system
is adopted.
• The electropneumatic filling valves are equipped with interchangeable level tubes to make the
best precision filling, and the filling level for the bottle is adjust.
Technical Parameter
| Model | DCGF24-24-8 | DCGF32-32-8 | DCGF40-40-40 |
| Heads of washing, filling, sealing | 24-24-8 | 32-32-8 | 40-40-10 |
| Production capacity(bottle/hour) | 8000-12000 | 12000-15000 | 16000-18000 |
| Suitable bottle height(mm) | H=170-320,D=50-100(330-1500ml) |
| Spraying pressure | 0.25-0.3MPa |
| Total Power(kw) | 3+0.45+0.25 | 5.5 | 7.5 |
| Overall dimension(L×W×H)(mm) | 3100×2100 *2650 | 3800×2800*2650 | 4000×3300*3400 |
| Weight(kg) | 4650 | 6800 | 8500 |
Company Information
Professional filling machine manufacturer---Zhangjiagang Jiayuan Machinery Co.,Ltd. is a professional beverage machinery manufacturer to produce beverage machine and water treatment equipment. The main products of our company contain: carbonated and non-carbonated beverage production line, pure water production line, juice, tea and alcohol and other liquids packed in bottle, barrel, can, glass, and others production lines.
