PCL Contol 2000-4000 bph carbonated drink making machine CE / SGS
Products Introduction
1. The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
2. Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
High automation and easy operation make it an ideal option for beverage companies.
Characteristics
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. 3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. 4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. 5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. 6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical Data
| Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-8 | DCGF40-40-40 | DCGF48-48-12 | DCGF60-60-15 | DCGF80-80-20 |
| Heads of washing, filling, sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 48-48-12 | 60-60-15 | 80-80-20 |
| Production capacity(bottle/hour) | 3000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-18000 | 20000-24000 | 24000-28000 | 36000-40000 |
| Suitable bottle height(mm) | H=170-320,D=50-100(330-1500ml) |
| Spraying pressure | 0.25-0.3MPa |
| Total Power(kw) | 1.5+0.37 | 2.2+0.37 | 3+0.45+0.25 | 5.5 | 7.5 | 11 | 15 | 19 |
| Overall dimension(L×W×H)(mm) | 2300×1680*2650 | 2500×1760*2650 | 3100×2100 *2650 | 3800×2800 *2650 | 4000×3300 *3400 | 4850×3650 *3300 | 6500×5400 *3500 | 7650×6400 *2700 |
| Weight(kg) | 2600 | 3500 | 4650 | 6800 | 8500 | 1000 |
Our Service
1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.
Product Tags:
|
|

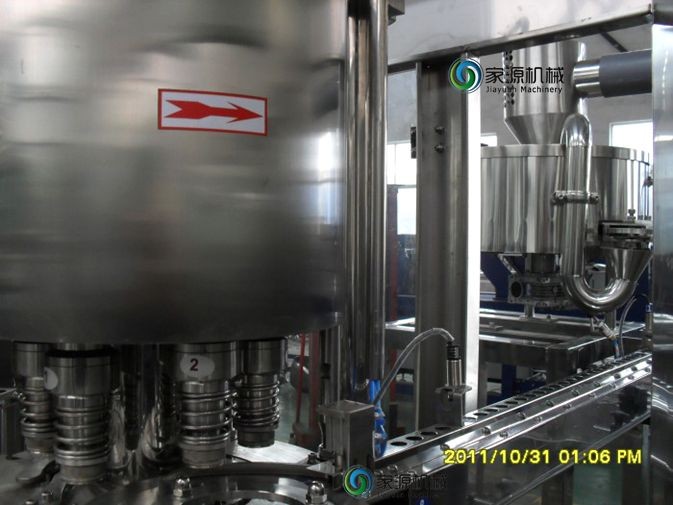

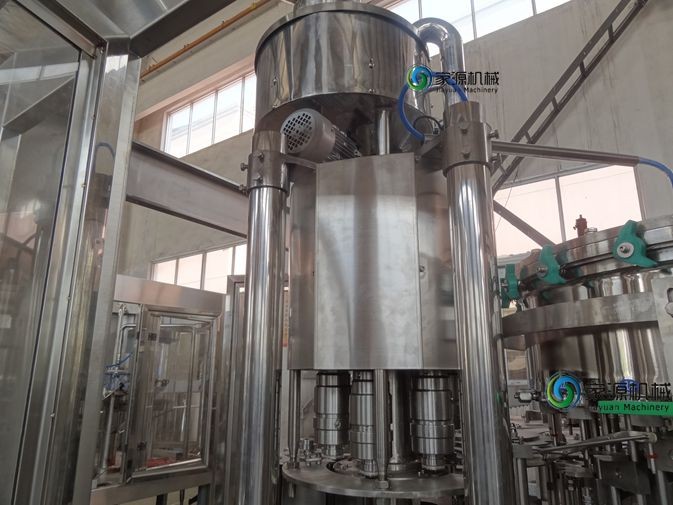

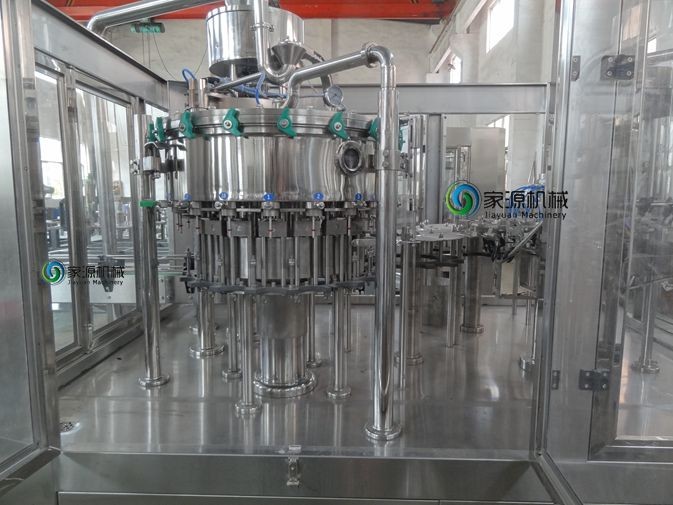

PCL Contol 2000-4000 bph carbonated drink making machine CE / SGS Images
|
